IS-G17-F5258-A6080-HV-M

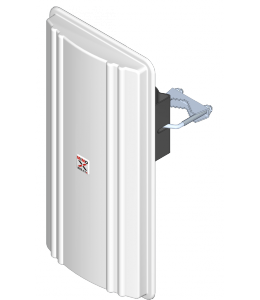

SECTOR H:17dBi/60° V:17dBi/80° / 5.2-5.8GHz / MIMO HV IS-G17-F5258-A6080-HV-M

IS-G17-F5258-A6080-HV-M SECTOR H:17dBi/60° V:17dBi/80° / 5.2-5.8GHz / MIMO HV IS-G17-F5258-A6080-HV-M
IS-G17-F5258-A6080-HV-M SECTOR H:17dBi/60° V:17dBi/80° / 5.2-5.8GHz / MIMO HV IS-G17-F5258-A6080-HV-M

Marka : INTERLINE

Kategori : Sektörel Anten

Stok Kodu : IS-G17-F5258-A6080-HV-M

Özel Kodu : U478

Stok Durumu : Ön Siparişle

Ön Siparişte Bulun
IS-G17-F5258-A6080-HV-M SECTOR H:17dBi/60° V:17dBi/80° / 5.2-5.8GHz / MIMO HV IS-G17-F5258-A6080-HV-M Karşılaştırmaya Ekle
IS-G17-F5258-A6080-HV-M SECTOR H:17dBi/60° V:17dBi/80° / 5.2-5.8GHz / MIMO HV IS-G17-F5258-A6080-HV-M Tıkla Whatsapp İle Sipariş Ver

New sector antenna for base stations in the MIMO technology developed for use with radio equipment operating in the 802.11n standard that use MIMO technology. Antenna has two connectors, are relatively light and compact allowing you to save space on the mast.

Key benefits

  • Radiators Protection

Features

  • MIMO
  • Sector coverage
  • Sector optimalization

compliance

ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant

electrical

Frequency (min)
5 200MHz
Frequency (max)
5 800MHz
Gain
17dBi, 17dBi
VSWR (max)
2.00:1
Polarization
Horizontal and Vertical
Half Power Beam Width (-3dB) - horizontal
60°
Half Power Beam Width (-3dB) - vertical
80°
FBR (Front/Back Ratio)
>26dB
Port to Port Isolation:
>44dB
DC Ground
yes
Impedance
50Ω

mechanical

Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
451x227x40mm
Weight (incl. mount)
1.50kg

enviromental

Enviroment
Outdoor
Windload
137N (@170km/h)
IP Rating
IP64
